CUT40NH

Item Number: L14003


Description：

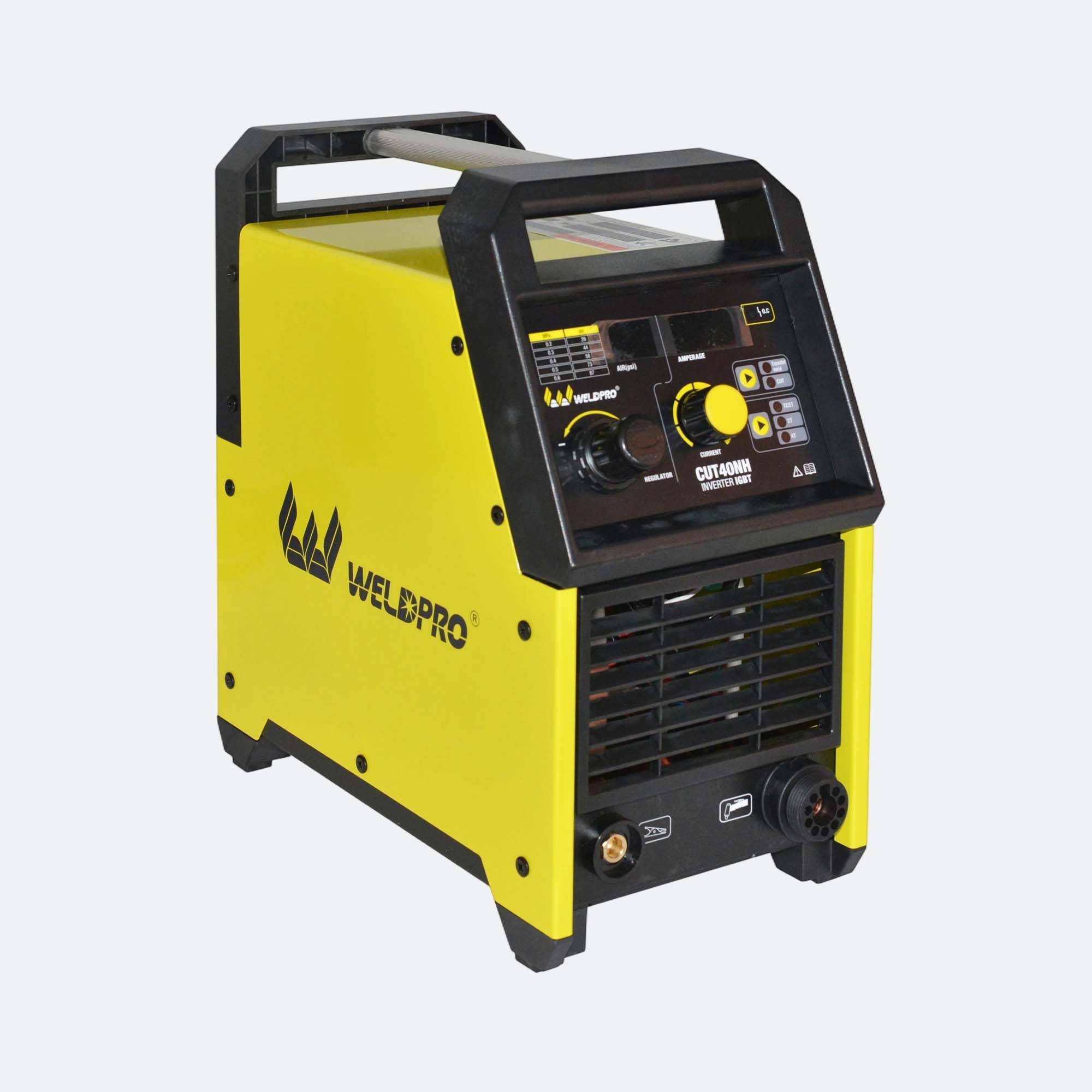

The Weldpro CUT40NH is a dual voltage, compact inverter manual plasma cutter that provides up to 40 amps of cutting current, making it capable of producing clean cuts on 1/2” steel plate.  The contactless mechanical “blowback” style pilot arc makes it easy to cut through painted metal, and will not interfere with surrounding electronics.  Cutting amperage ranges are 15-40 (240V) and 15-30 (120V).  The digital panel is simple and accurate, and air pressure is adjusted via the regulator knob on the front panel.  With 120V/240V capabilities, this welder can be operated almost anywhere a power outlet is found and can be used with "clean" power generators.  Clean, dry air with a minimum flow rate of 4.0 SCFM @ 70 Psi is required for proper air flow when cutting.  A 3 year power source warranty delivers confidence and peace of mind.



Features：
● Cutting amperage range of 15-40A
● Lightweight and portable inverter design
● Contactless mechanical “blowback” pilot arc starting
● Duty Cycle: 60% at 40A
● 2T/4T trigger selection
● High temp and overload protection with indicator
● Common plasma consumables
● 240V clean cut rating of 1/2”; 120V clean cut rating of 1/4”

Package Includes：
● S45 20' cutting torch
● Ground clamp 200A with 10' cable and 10-25 Dinse connector
● Power adapter 115/230V
● Air flow test tube
● Spare consumables
