MIG155GSV

Item Number: L13002


Description：

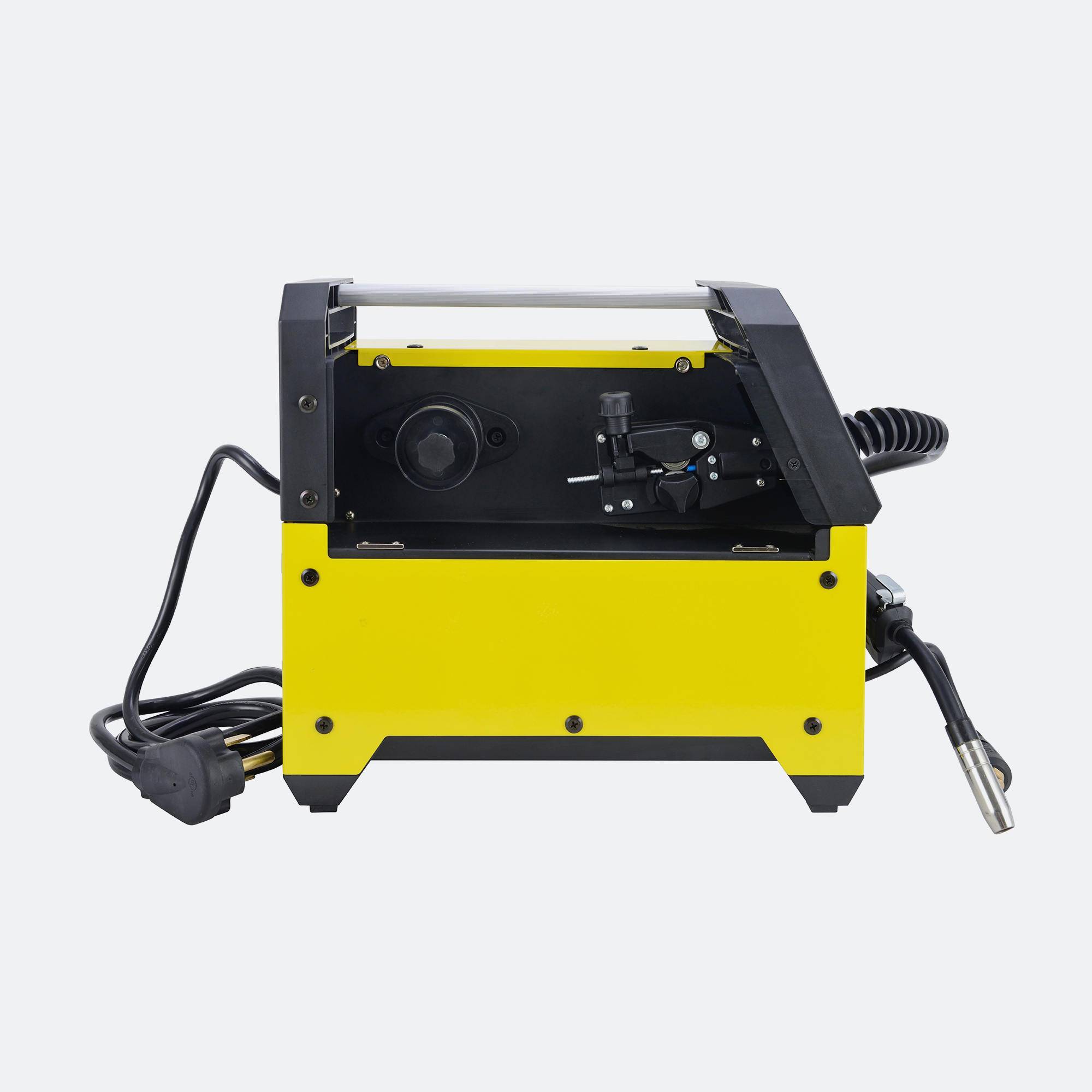

The MIG155Gsv is a dual voltage, compact inverter welder that provides MIG, flux core (FCAW), and DC Stick welding capability.  It can also perform DC scratch start TIG with the optional 9FV or 17FV TIG torch (sold separately).  Incorporating IGBT inverter technology, the MIG155Gsv features performance and high efficiency in a small and powerful package.  With 120V/240V capabilities, this welder can be operated almost anywhere a power outlet is found and can be used with "clean" power generators.  With 240V power, 1/4” steel plate can be welded in a single pass.  MIG and Stick polarity changes are simple as well.  The 7.5’ MIG torch is “hard-wired” to the machine for simple setup.  This machine is not spool gun compatible.  A 3 year power source warranty delivers confidence and peace of mind.


Features：
● MIG/FCAW and DC Stick; welding amperage range of 30 - 155A
● DC scratch start TIG with optional TIG torch (sold separately)
● Duty Cycle: 30% at 155A
● Dual voltage 120V/240V
● Highly compact and portable IGBT inverter design
● Over-current, over-heating, and low voltage protection

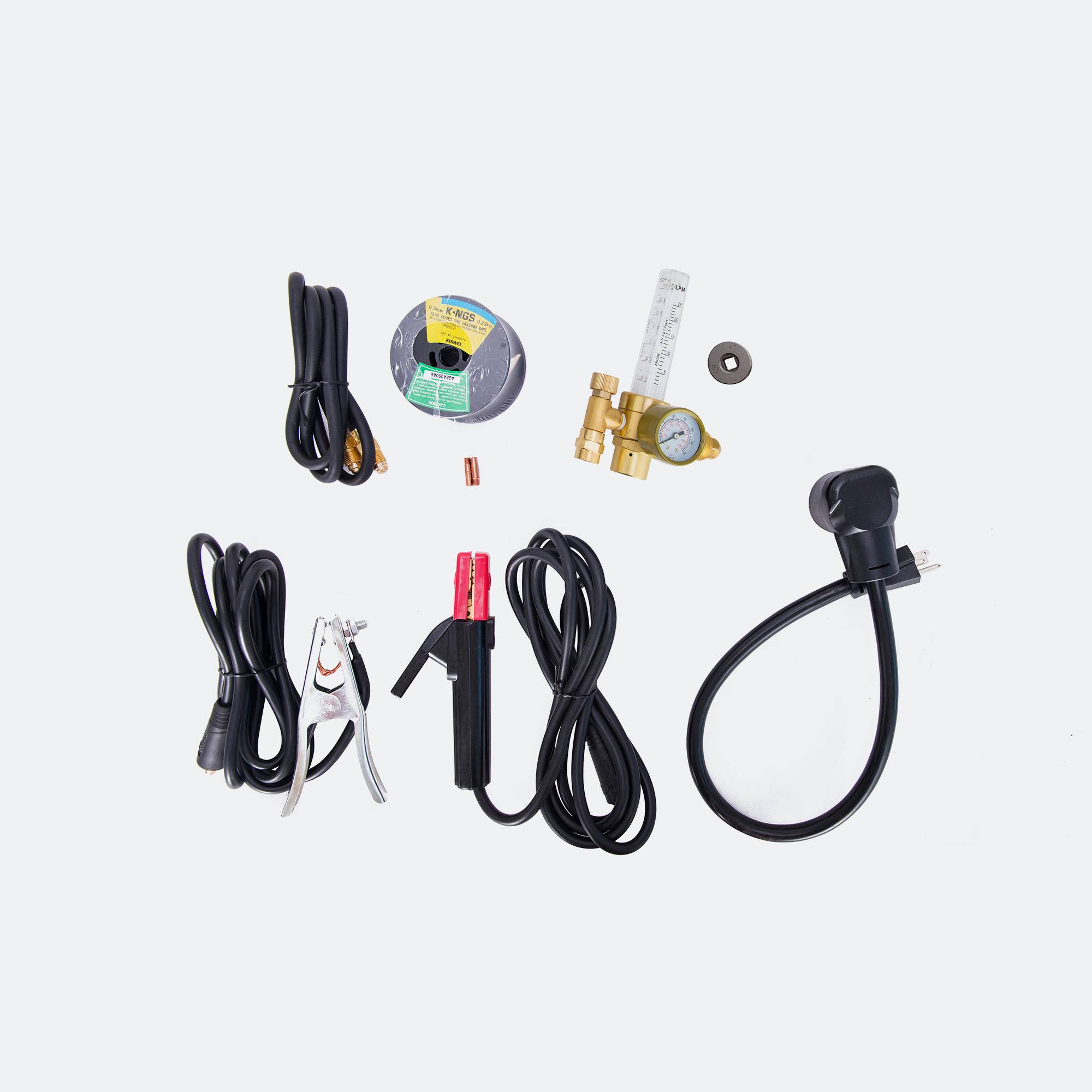

Package Includes：
● MIG155Gsv welder
● MIG gun 150A 7.5ft
● Electrode holder 200A with 10' cable and 10-25 Dinse connector
● Ground clamp 200A with 10' cable and 10-25 Dinse connector
● Power adapter 115/230V
● Flow meter
● Gas hose
● .030”/.035” K-groove drive roller (flux core wire)


MIG155GSV spec sheet

MIG155Gsv manual
